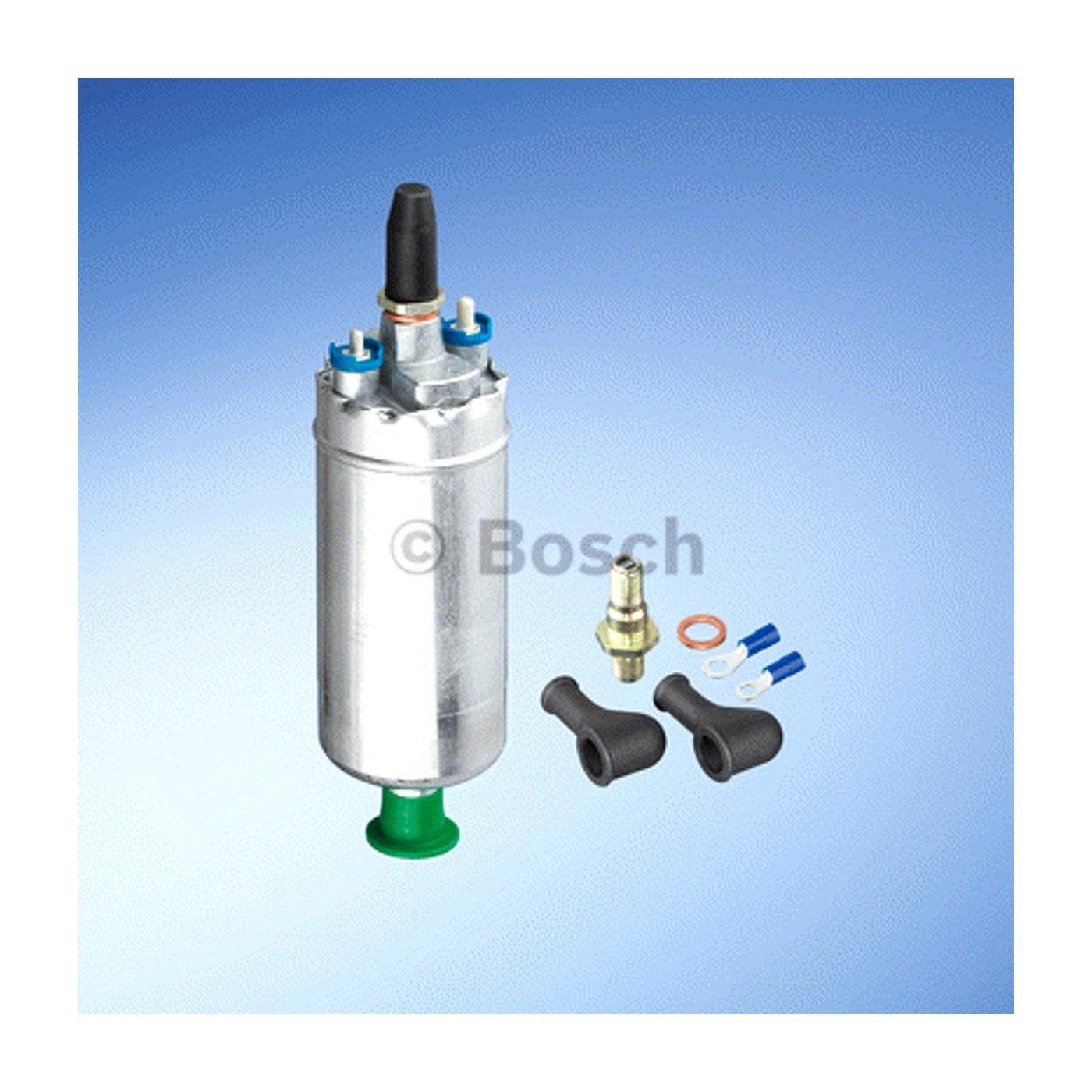

Fuel Pump electric external Volvo 240 300 740 940 960 Saab 9000

Electric fuel pump for mounting outside the fuel tank. Fits several Volvo and Saab models with LH system.

Technical information:
Working pressure 4 bar
Inlet connection 12 mm

Fits the following models:
Volvo 240 B21F LH-Jet B23F B200F B230F
Volvo 740 B200F B204E B230F B234F
Volvo 940 B200F B204E B230F B230FB B230FD B234F
Volvo 960 B6304FS -94
Saab 9000 with LH 2.4

OEM numbers:
9142044
1336679
9142045
1389449

Bosch numbers:
0 580 464 025
0 580 464 068
0580464025
0580464068

Installation and information:
On Volvo 240 from 1985 and 700 and 900 series, the fuel pump is connected to the filter with plastic pipe part number 1312297

The union nut on the plastic pipe fits directly onto the threaded nipple pre-mounted on the pump

The plastic pipe is often damaged during removal, which means many vehicles have non-original solutions

For safety reasons it is recommended to restore the original setup using fuel pipe 1312297

Fits pumps with Bosch end numbers 039 and 068

Note:
Compare the article number with your old pump to ensure the original pump is marked 025 039 or 068

Not suitable for K-jetronic mechanical injection as the pump provides too low pressure

If the fuel pump makes excessive noise it is not necessarily defective

It is common that the in-tank pre-supply pump is faulty

The main pump is then forced to work harder and pull fuel through the defective pump, causing loud noise

If this has been ongoing for a long time, both the main pump and the in-tank pump should be replaced
