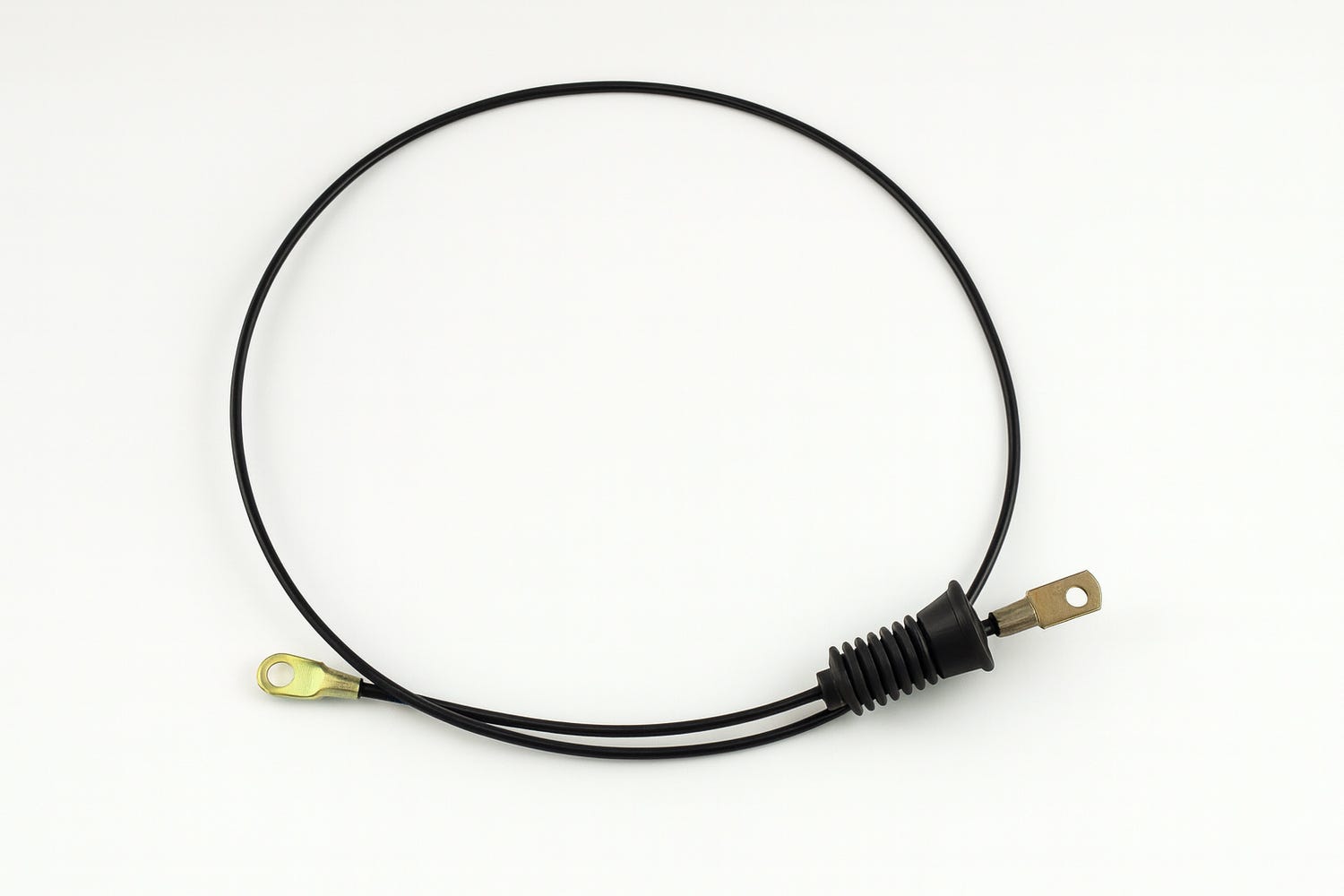

Right Hand Brake Cable Volvo 740, 760, 940, 960 – Non-Multilink – Part No. 1387788
Right-hand parking brake cable for Volvo 740, 760, 940 and 960 models with a solid rear axle. Fits both sedan and estate models and features a fork connection to the brake expander.
Fits the following
- Volvo 740 1988–1992, sedan and estate (non-Multilink)
- Volvo 760 1988–1990, sedan and estate (non-Multilink)
- Volvo 940 1991–1998, sedan and estate (non-Multilink)
- Volvo 960 up to 1994 (non-Multilink)
Product Information
- Part Number: 1387788
- Type: Hand brake cable
- Position: Right side
- Connection: Fork connection to brake expander
- Design: Loop on one end and bracket with fork connection on the other end
- Length: 910 mm
Information
- Fits both sedan and estate models
- For vehicles without Multilink rear suspension
- Features a loop on one end and a fork connection on the other end
Important Information
Around 1988, Volvo changed the design of the hand brake cables. During previous repairs, many older vehicles were converted to the later cable type.
Always check which type of hand brake cable is fitted to the vehicle before ordering.
Installation
Inspect cable mounts, outer casing and adjustment components when replacing the cable. After installation, adjust the parking brake according to Volvo specifications.
