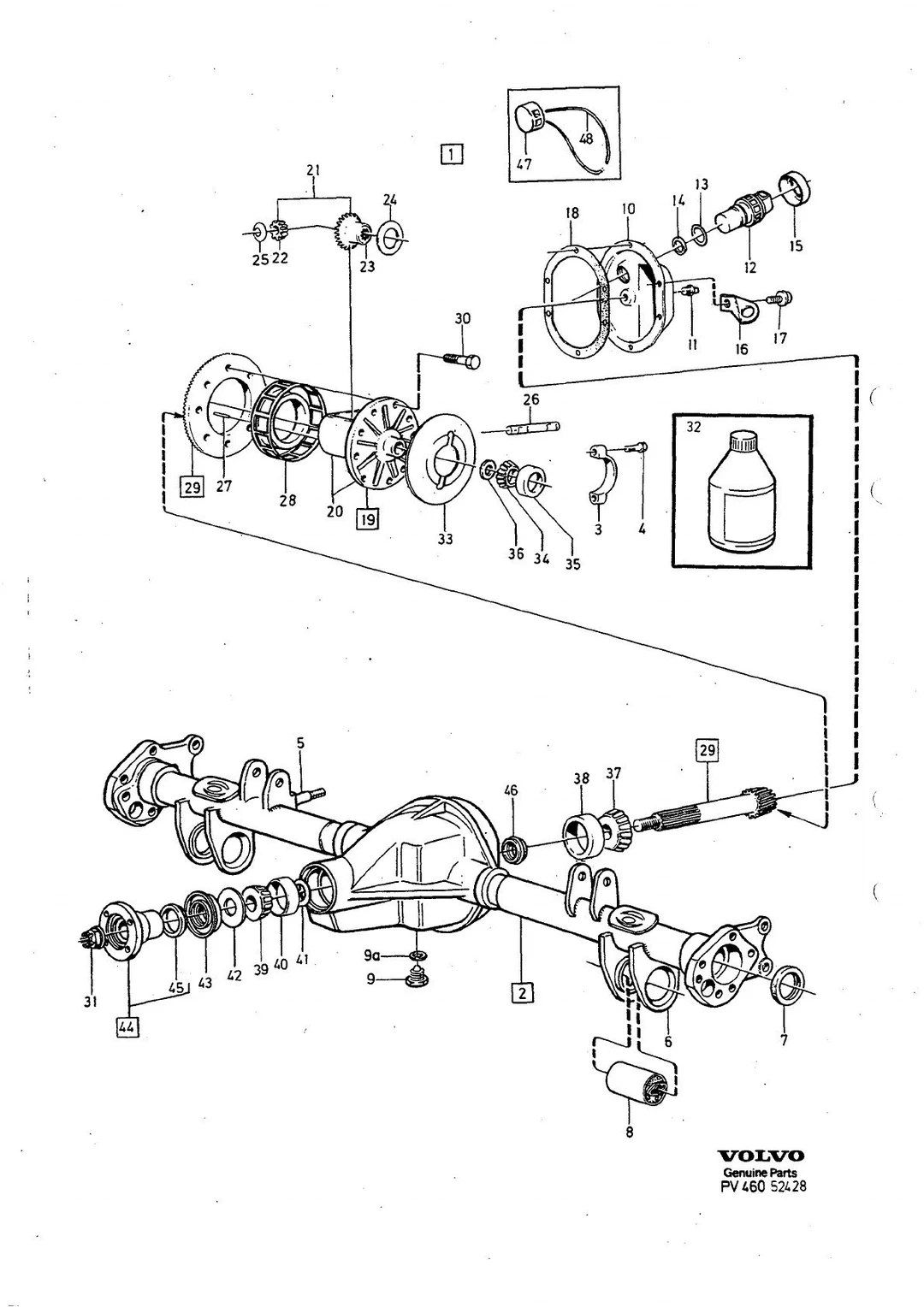

Rear axle, excluding limited-slip differential, excluding ABS for Volvo 240 1988- — Exploded diagram

1. •Replaced by 1 pc 1216345-7
2. •Replaced by 1 pc 1216343-2
3. •Replaced by 1 pc 1216341-6
4. •Replaced by 1 pc 1216332-5
5. •Replaced by 1 pc 1216214-5
6. •Replaced by 1 pc 1216213-7
7. •Replaced by 1 pc 1216397-8
8. •Thickness 0.1 mm
9. •Thickness 0.15 mm
10. •Thickness 0.25 mm
11. •Thickness 0.7 mm
12. •Thickness 1.5 mm
13. •Thickness 2.5 mm
14. •Final drive ratio 3.31/1 (273139)
15. •Rear axle ratio 3.54/1 -1989
16. •Final drive ratio 3.54/1 (273410)
17. •Rear axle ratio 3.73/1 -1989
18. •Final drive ratio 3.73/1 (271256)
19. •Rear axle ratio 3.91/1 -1989
20. •Final drive ratio 3.91/1 (273980)
21. •Rear axle ratio 4.56/1 -1989
22. •(1161276) 0,5l
23. •Thickness 0.08 mm
24. •Thickness 0.13 mm
25. •Thickness 0.75 mm
26. •Rear axle marked F

Glossary — Volvo abbreviations

THK

thickness

LG

length

RATIO

gear ratio

SP

superseded part

NS

not stocked as a spare part

KN

included in kit + NS

IK

included in kit

• 1216174 — Original Volvo article number
• Alt. no. 264612 — superseded number
• 1) — What the numbers mean
• NS — Not stocked

The numbers below refer to the article numbers in the catalog.
