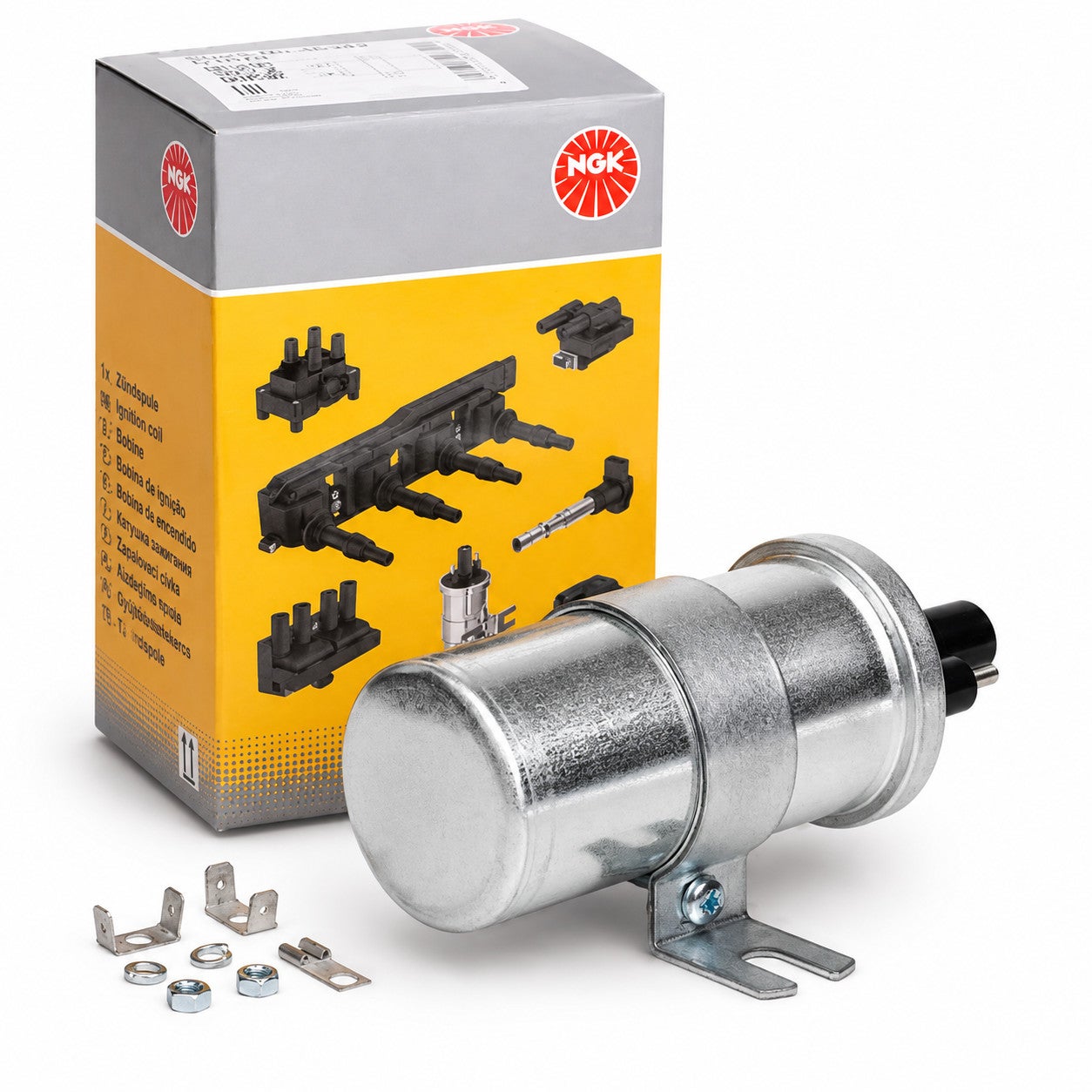

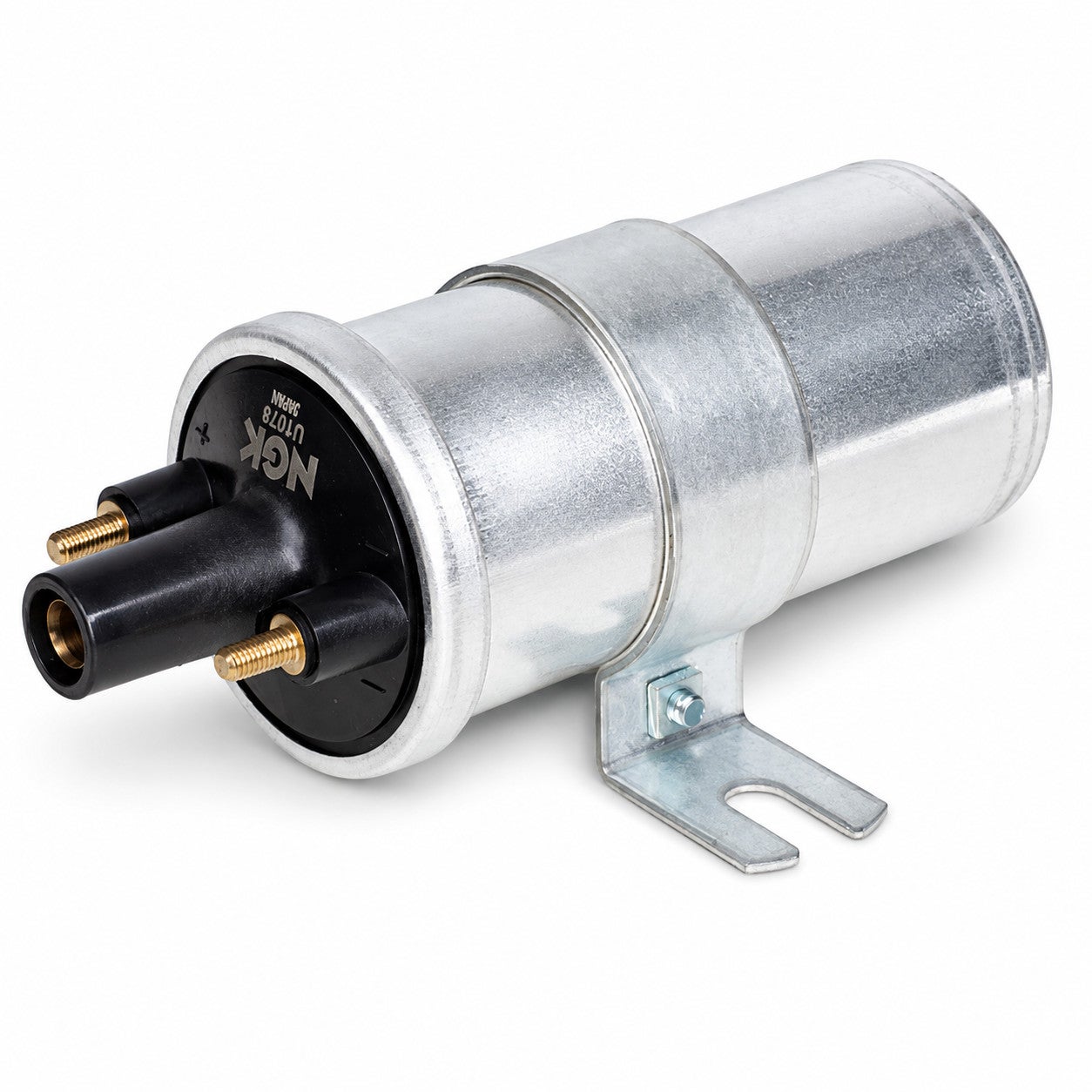

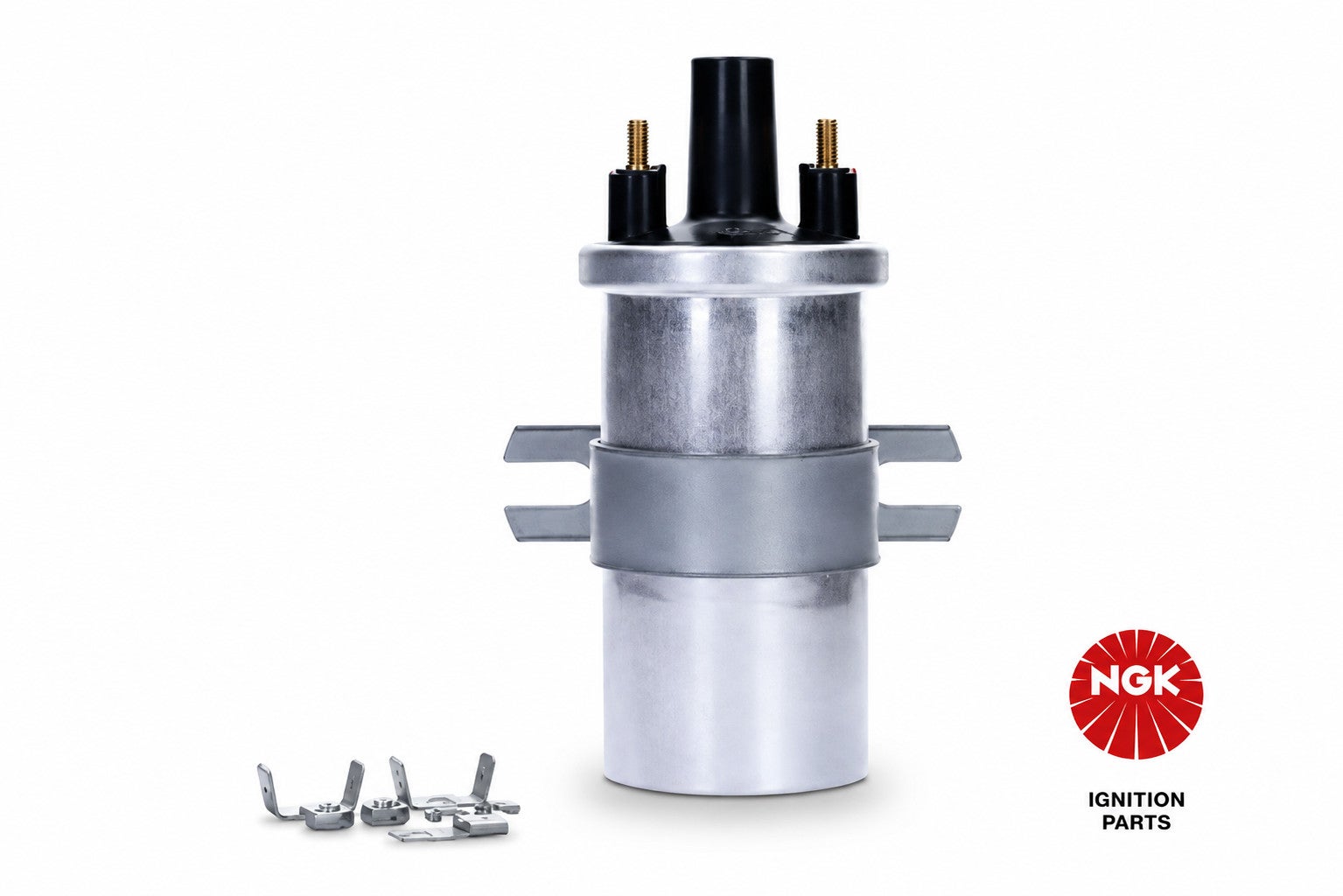

NGK 12V Ignition Coil – Universal

Universal NGK 12V ignition coil for vehicles with a traditional ignition distributor. The ignition coil generates the high voltage required by the spark plugs and sends the ignition pulse to the distributor, which distributes it to each cylinder through the ignition leads.

This type of ignition coil is designed for classic ignition systems with an ignition distributor.

Specifications

• Part Number: 241611-NGK
• Manufacturer: NGK
• Voltage: 12 V
• Type: Universal ignition coil
• For vehicles with: Ignition distributor
• Number of inputs/outputs: 1
• Connector: 2-pin
• Connection type: DIN
• Maximum generated voltage: approx. 30,000 V

Function

The ignition coil generates a high-voltage pulse that is sent to the rotating ignition distributor. The distributor then sends the pulse through the ignition leads to the correct cylinder according to the engine's firing order.

Important Information

As this is a universal ignition coil, check the vehicle's ignition system, connections and voltage before ordering. It is designed for 12 V systems with a traditional ignition distributor.
